4MPC10 1.0HP 0.75Kw 1500N for 4L5-08

4MPC15 1.5HP 1.1Kw 2500N for 4L5-13

4MPC20 2.0HP 1.5Kw 2500N for 4L5-16

4MPET30 3.0HP 2.2Kw 2500N for 4L5- 23

• Pump shaft extension     NEMA standard
• Liquid temperature          max 30° C
• Cable     1,5 m (4” 0,37-2,2 kW)
• 2,5 m (4” 3,0-5,5 kW)
• 3,5 m (4” 7,5 kW)
• Upper support: cast iron and stainless steel
• External Jacket, shaft and cup: stainless steel
• Mechanical seal ceramic-graphite
• Ball bearings: axial and radial oil lubricated
• Number of startups/hr: max 30
• Max Depth of immersion: 250m
• Asynchronous 2 poles rewindable in oil bath: 1~ 220/230V-50Hz, 3~ 380/415V-50Hz
• Insulation class: F
• Protection degree: IP68

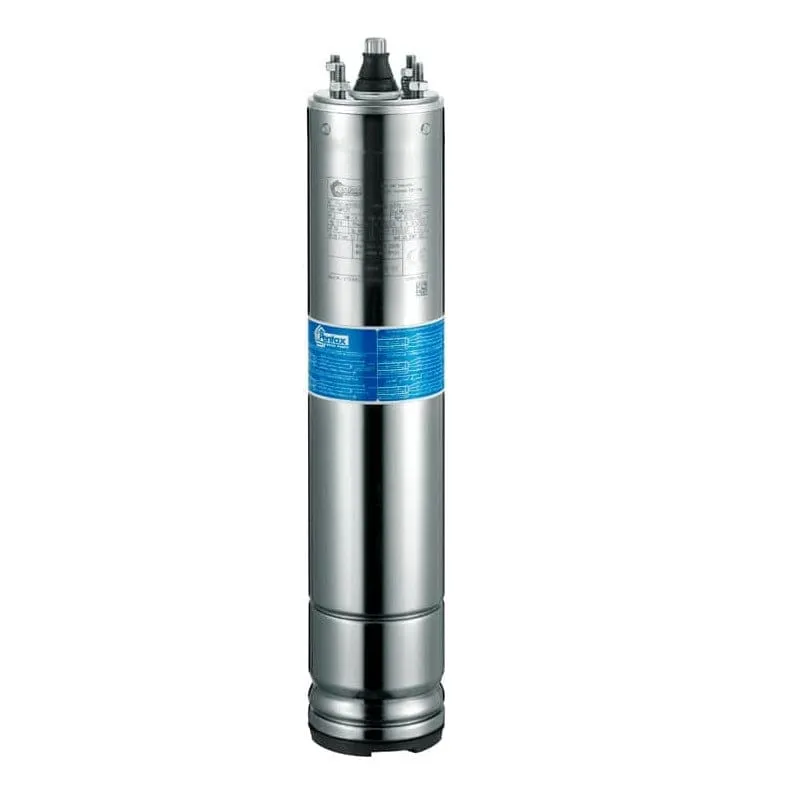

Elevate your deep well pumping system with Pentax Submersible Motors crafted for the 4L5 Series Deep Well Pump. Explore three robust options – 1.0HP, 1.5HP, and 2.0HP – ensuring efficient and reliable water extraction. Specifically designed for compatibility with the 4L5 Series, each motor guarantees a seamless fit and is built to withstand the demands of continuous deep well pumping. Pentax's commitment to quality shines through, providing motors that deliver consistent power for a dependable and uninterrupted water supply.
