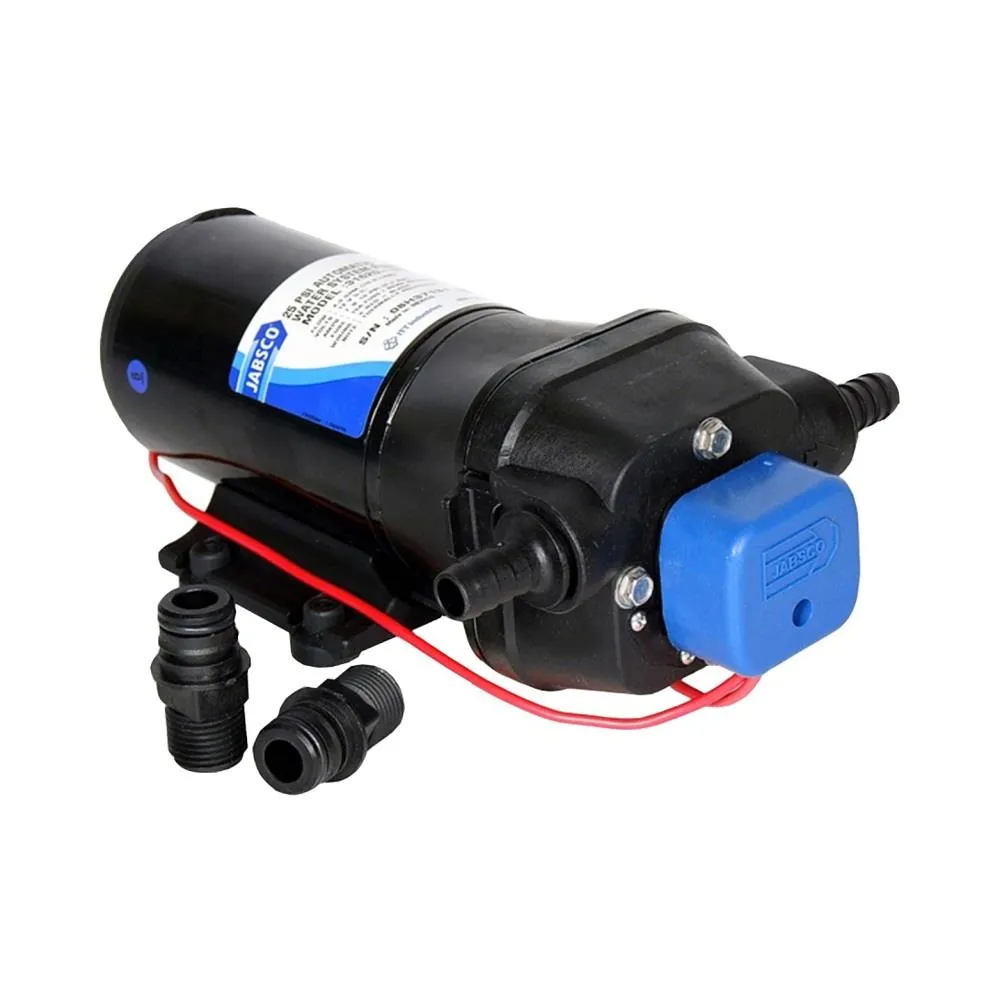

Jabsco Par-Max 4.0 is a multi outlet water pressure pump serves four or more 13 mm (1/2 in) outlet at any one time. Snap-fit ports simplify both installation and removal for routine service.
- 16.3 L/min (4.3 GPM) open flow output
- Self-priming up to 3 m (10?)
- Four piston diaphragm sealed for smooth and quiet operation
- Thermal overload protection automatically stops motor should it overheat due to overload, with auto restart feature
- Diaphragm design allows dry running
- Pressure switch cut-in at 0.7 bar (10 psi), cut out at 1.7 bar (25 psi), low pressure, or cut-in at 1.4 bar (20 psi), cut-out at 2.8 bar (40 psi), high pressure
- Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)
